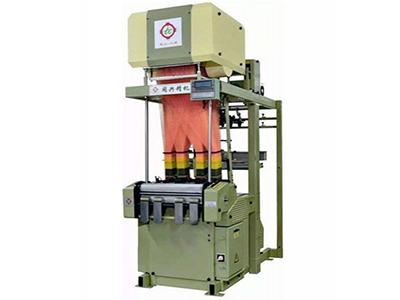

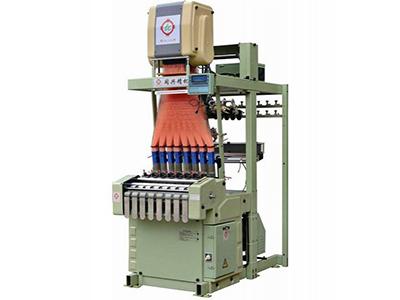

Jacquard Loom Machine

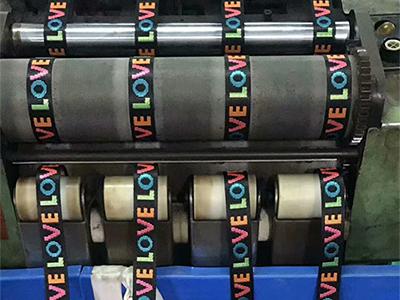

Our jacquard loom machine is a dependable piece of textile machinery used to manufacture various types of elastic and non-elastic narrow fabrics with complex patterns. This weaving loom is suitable for the production of webbing items without strict thickness requirements or fabric ribbons with simple patterns.

Inquiry

• Rubber feeding device
• Frequency converter device
• Counter
• Front / rear take-up machine
• Rear creel number

• The jacquard weaving machine and its main components are produced from 45# steel and nodular cast iron. In an effort to enhance the service life of the equipment, painting and electroplating processes are carried out on the surface of the machine.
• All machine parts are manufactured using our own CNC machines with a processing precision of 0.005mm, which guarantees stable running and low noise during operation.
• Each jacquard machine features a linkage transmission as opposed to traditional belt-type transmissions. This helps to prevent missed stitches caused by loose or broken belts.
• The jacquard harness utilizes springs to reduce the friction between the jacquard harnesses.
• The solenoid valve is separated from the drive plate, and the solenoid valve module is sealed with a plastic material for easy maintenance. Additionally, the low power valve can realize high-speed running.
• The machine’s completely enclosed structure effectively prevents dust from entering its interior to minimize the amount of maintenance. Simply apply lubricant a few times per year.
• A computer assisted pattern design and layout system enables fast and easy operation. The machine is USB compatible.
• This jacquard loom machine is equipped with a built-in permanent software program, which recalls previously used data sets from the storage system. In the meantime, this system will automatically back up the data to prevent pattern data loss during machine downtime.
