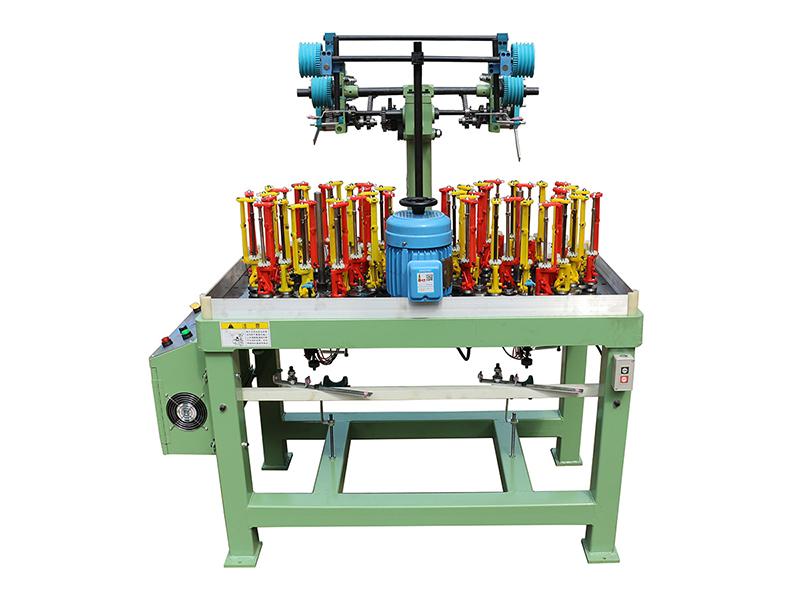

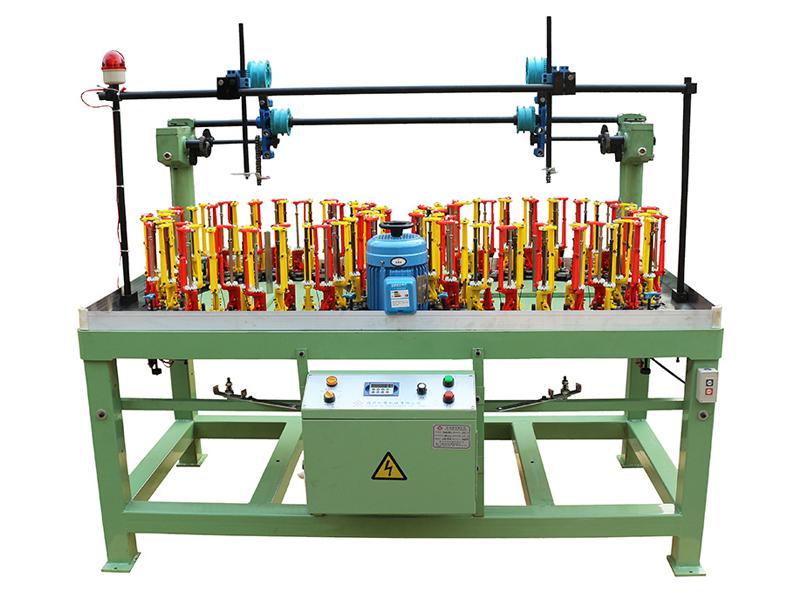

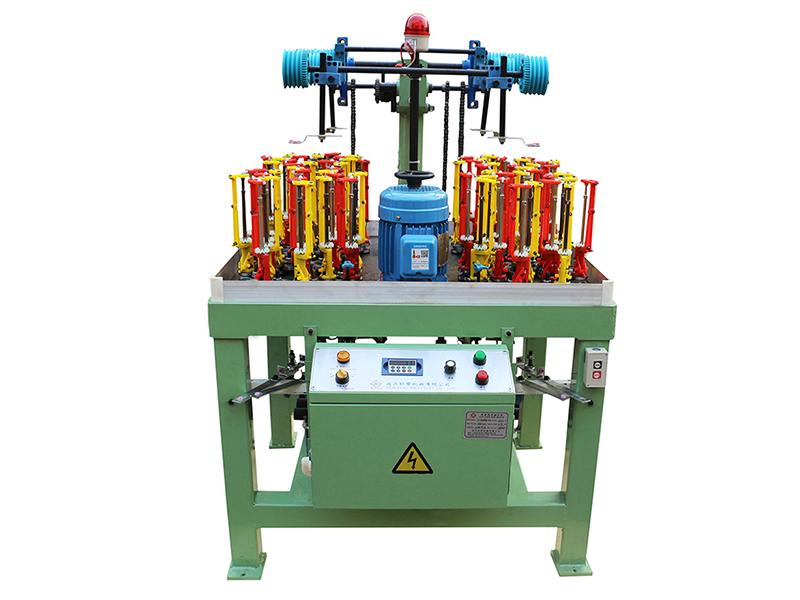

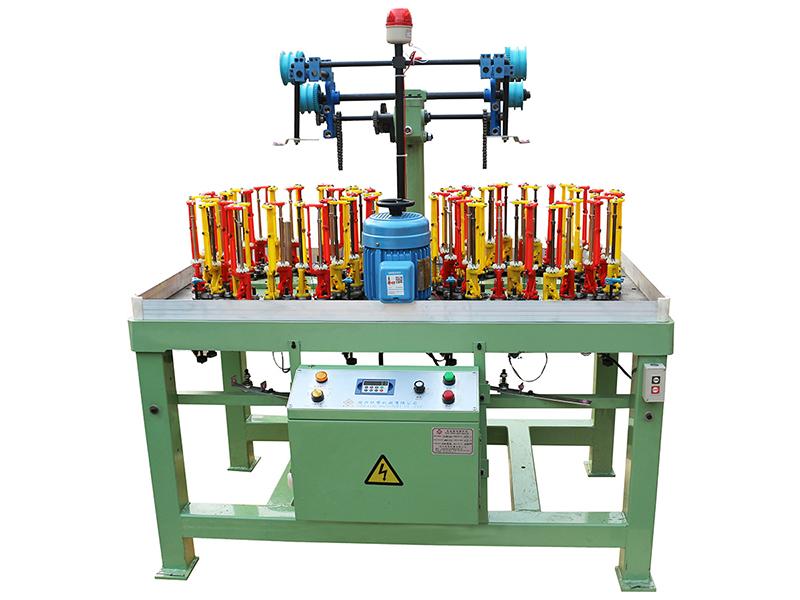

High Speed Braiding Machine

  • Braiding MachineTX-BM16/4
  • Braiding MachineTX-BM24/2
  • Braiding MachineTX-BM32/2
  • Braiding MachineTX-BM48/2

The high-speed braiding machine produces a variety of round or flat ropes, with the ability to simultaneously knit up to 8 ropes. This textile machine is ideal for the production of tow ropes, curtain straps, shoelaces, fishing lines, elastic bands and decorative belts.

Inquiry
Parameters
Model Spindle Heads Spindle speed Motor Motor speed Voltage
TX-BM8 8 4 0-360rpm 0.75hp 1395rpm 220V
TX-BM9 9 8 0-360rpm 0.75hp 1395rpm 220V
TX-BM13 13 4 0-360rpm 0.75hp 1395rpm 220V
TX-BM16 16 4 0-360rpm 0.75hp 1395rpm 220V
TX-BM17 17 4 0-360rpm 0.75hp 1395rpm 220V
TX-BM24 24 2 0-360rpm 0.75hp 1395rpm 220V
TX-BM25 25 2 0-360rpm 0.75hp 1395rpm 220V
TX-BM26 26 2 0-360rpm 0.75hp 1395rpm 220V
TX-BM32 32 2 0-360rpm 0.75hp 1395rpm 220V
TX-BM33 33 2 0-360rpm 0.75hp 1395rpm 220V
TX-BM40 40 1 0-360rpm 0.75hp 1395rpm 220V
TX-BM48 48 2 0-360rpm 0.75hp 1395rpm 220V
Optional devices
  • Automatic rubber feeding device
  • Automatic take-up machine
Features
  • Most components inside the braiding machine are produced using a high precision CNC machining center and CNC lathes, giving them a highly accurate performance, high efficiency, low noise and long service life.
  • Using advanced frequency conversion technology, the machine speed is easily adjustable according to processing needs.
  • When center yarn and other yarn breakages occur, an automatic stop device efficiently reduces the rejection rate.
  • Equipped with a synchronous feeding device during different material layer weaving processes, the textile machine produces double layer ropes with ease.
  • Low energy consumption and low electricity consumption, adaptable voltage is 220V.
Brief

Here at TX Machinery, we provide a wide range of ribbon weaving machines, crochet machines, and braiding machines to produce various types of garment ribbons, industrial webbing, shoelaces, straps, cords, ropes, and more. Whether you are looking for heavy nylon webbing, patterned ribbon or lace ribbon, we can offer you the most suitable option.
