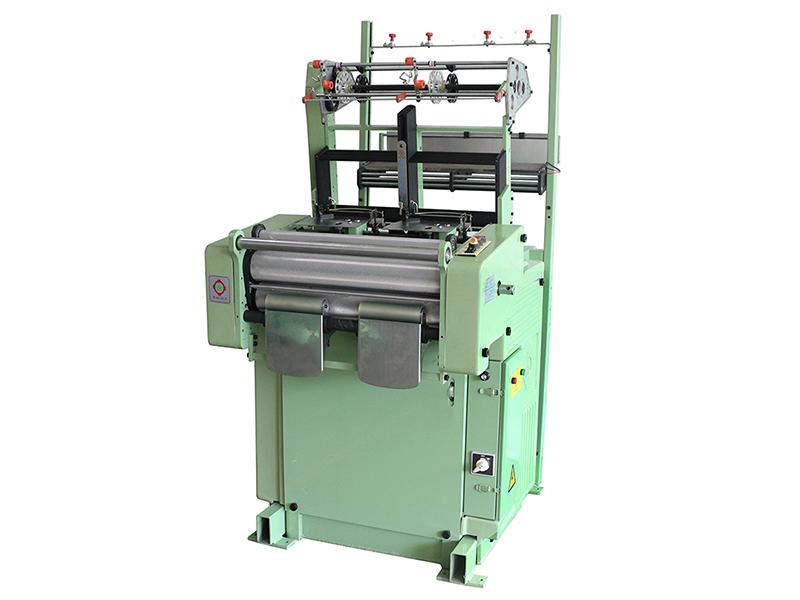

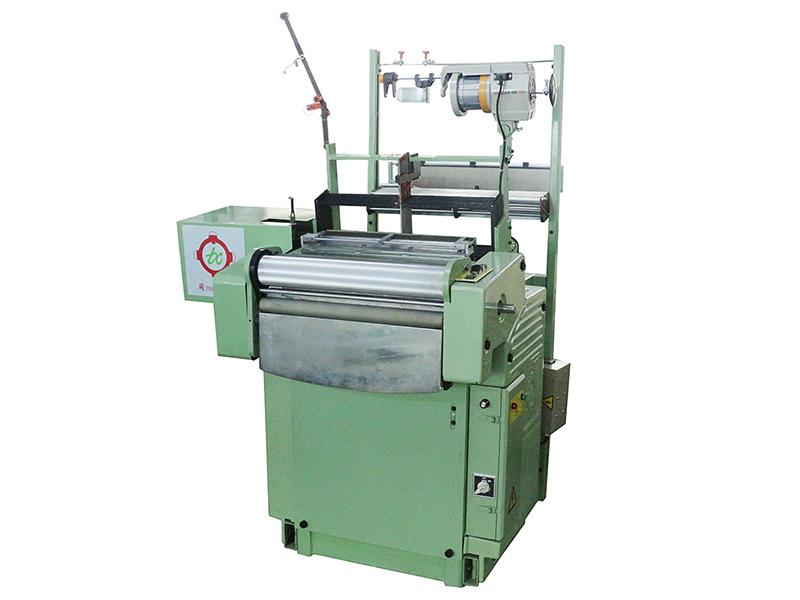

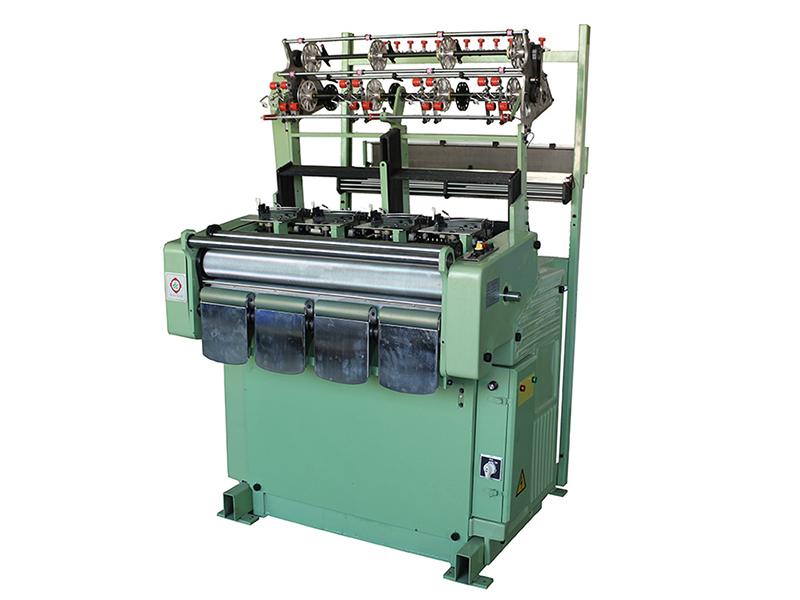

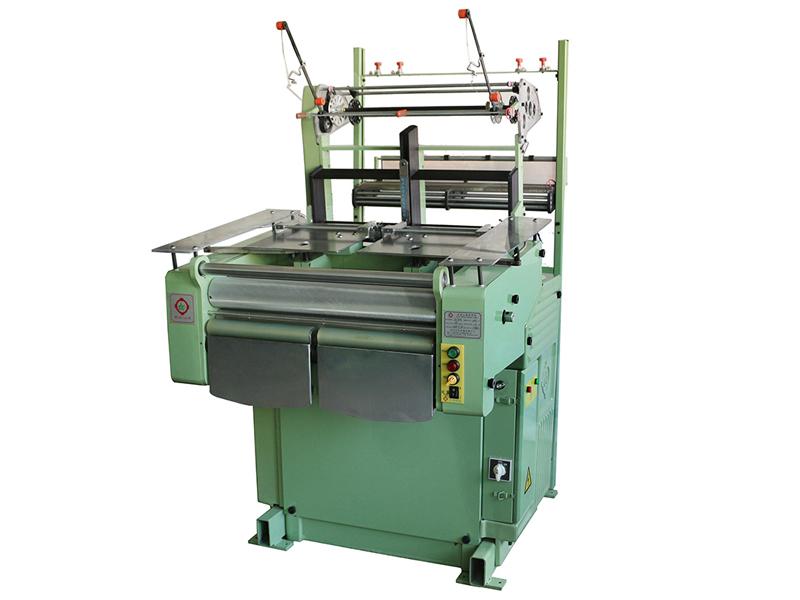

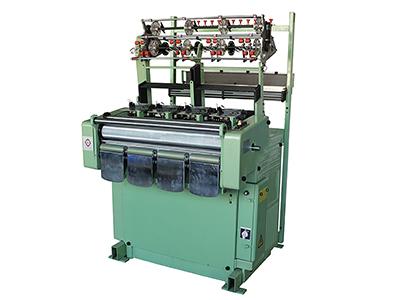

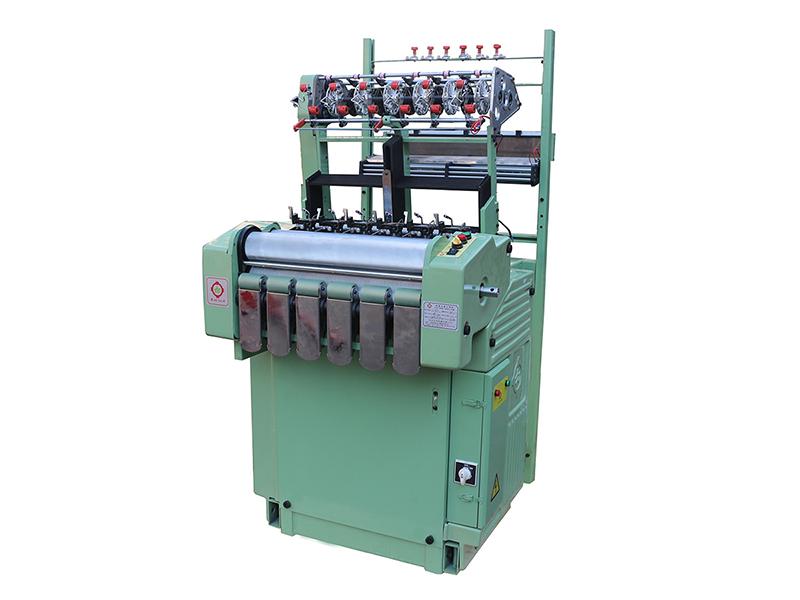

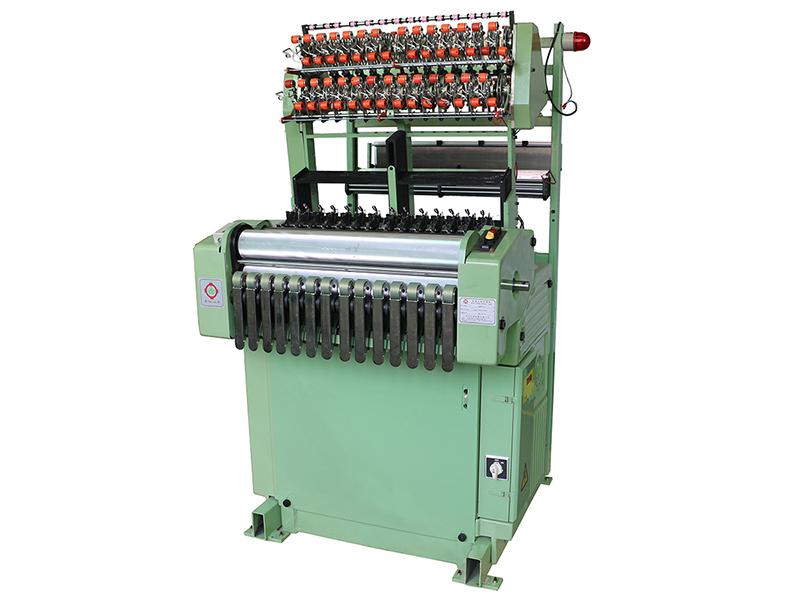

With a webbing width range of 0.5mm to 500mm, this high-speed needle loom machine is applicable for the production of elastic tape, safety belts, PP band, cotton tape, chest belts and plaid ribbon. It easily produces different webbing types and offers increased benefits thanks to the wider width and larger adjustment range.

Inquiry
Parameters
Model Heads / lines Max. width(mm) Heald frame Pick pepeat Weft density(cm) Machine rotation speed(r/min)
12/17 12 17 12(16) 8-48 3.5-36.7 1000-1200
10/25 10 25 12(16) 8-48 3.5-36.7 1000-1200
8/30 8 30 12(16) 8-48 3.5-36.7 1000-1200
8/35 8 35 12(16) 8-48 3.5-36.7 1000-1200
6/55 6 55 12(16) 8-48 3.5-36.7 1000-1200
4/55 4 55 12(16) 8-48 3.5-36.7 1000-1200
4/80 4 80 12(16) 8-48 3.5-36.7 1000-1200
4/130 4 130 12(14) 8-48 3.5-36.7 400-800
2/165 2 165 12(16) 8-48 3.5-36.7 200-500
2/200 2 200 12(14) 8-48 3.5-36.7 100-350
2/300 2 300 12(14) 8-40 3.5-36.7 50-200
500 1 500 12(14) 8-40 3.5-36.7 50-200
Optional devices
  • Three roller automatic rubber feeding device
  • Double roller automatic rubber feeding device
  • Double wheel take off device
  • Double roller take off device
  • Automatic weft feeding device
  • Belt weft feeding device
  • Double weft double latch needle device
  • Double hook and double latch needle device
  • Frequency converter
  • Counter
  • Front / rear automatic take-up machine
  • Rear creel number
Features
  • The compact and advanced machine structure ensures the needle loom features a small footprint.
  • Main parts are produced using CNC equipment with a process precision of 0.005mm, ensuring machine durability and reducing the depreciation rate, offering more benefits to the user.
  • Lubrication is carried out using an automatic-circulation lubrication system. A broken yarn automatic stop function provides effective control over fabrics used while saving both time and labor.
  • The yarn feeding device utilizes a belt transmission with a gear for flexible speed shifting. This ensures weft yarn feeding stability and ensures the machine is suitable for the production of a variety of webbing types.
Brief

Here at TX Machinery, we provide a wide range of ribbon weaving machines, crochet machines, and braiding machines to produce various types of garment ribbons, industrial webbing, shoelaces, straps, cords, ropes, and more. Whether you are looking for heavy nylon webbing, patterned ribbon or lace ribbon, we can offer you the most suitable option.
