Crochet Knitting Machine

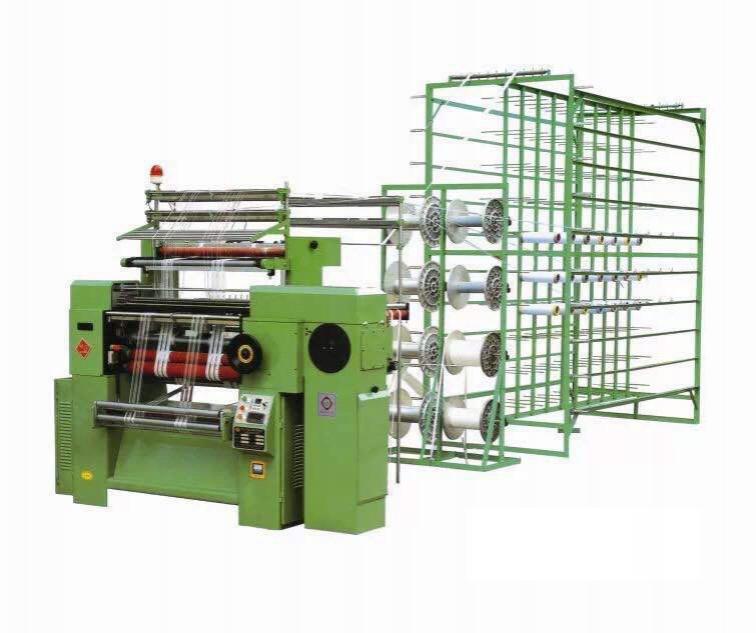

Crochet Knitting Machine

The crochet knitting machine is ideal for the production of simple flat ribbons with a width of 0.2cm-9cm, and does so with a high yield and efficiency, making it ideal for the production of laces, tassels, mask straps, clothing straps, bra straps and more.

Inquiry
Parameters
Model TX-400-B8 TX-900-B3
Weft Guide Bar 8 bar 3 bar
Working width 30inch / 762mm
Gauge needles per inch 10,12,14,15,18,20 (according to customer needs)
Link chain 12-50sections
Weft density 5-20S/cm
Tape Width 10mm(62pcs), 25mm(24pcs), 30mm(18pcs), 60mm(10pcs), 70mm(8pcs)
Motor 1.5kw
Speed 1500 rpm
Creel Ends 200 position
Beam Creel 8pcs beam creel 4 pcs beam creel
Package size 1.85*1.0*1.55CBM 1.6*1.0*1.55 CMB
Features
  • The machine body and main parts are produced using CNC equipment with a high processing precision, guaranteeing an exceptional machine durability and high running speed, with a noise below 60dB.
  • The elastic needle plate design ensures the machine is easy to operate and adjust.
  • Bearings from internationally known brands, such as NSK and FAG are placed in the sealing lubricating oil to extend the service life.
  • The ribbon take-up pulley makes it easy to transfer ribbon.
Brief

Here at TX Machinery, we provide a wide range of ribbon weaving machines, crochet machines, and braiding machines to produce various types of garment ribbons, industrial webbing, shoelaces, straps, cords, ropes, and more. Whether you are looking for heavy nylon webbing, patterned ribbon or lace ribbon, we can offer you the most suitable option.
