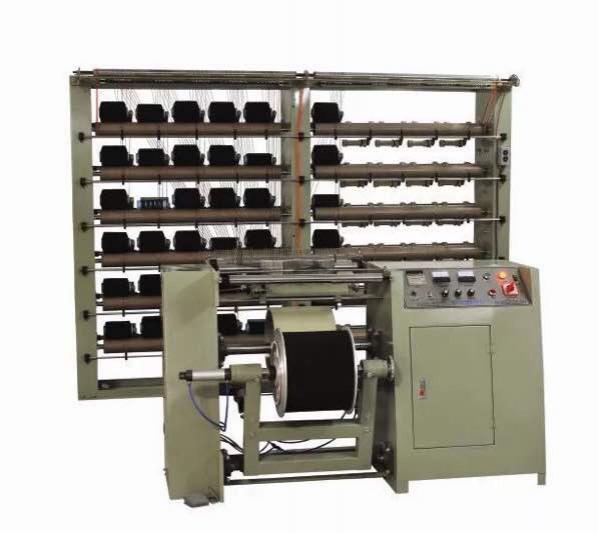

Rubber Warping Machine

Rubber Warping Machine

Rubber warping machines carry out wrapping of spandex and rubber threads, preparing them for the next process. The beam size is 12, 14, or 16 inches, with the number of ends at 60, 72, or 84. Customization options are also available.

Inquiry
Parameters
Creel 60, 72, 84 (number of ends)
Beam Diameter is below 400mm, the diameter of bore is 17 or 20mm, length 255mm
Variable speed 0~350r/min
Line speed 1-399m/min
Main motor Three-phase, 1.5KW, 50 Hz, 380v ,3.68A, 1400r/min
Creel motor Three-phase, 0.75kw, 50HZ, 380v, 2A, 1390r/min
Dimension of main machine 1600×700×1000 mm
Dimension of creel 2600×600×1800 mm (60 end)
Features
  • The rubber warping machine uses a variable frequency drive to ensure a stable start and flexible speed adjustment, ensuring a constant tension from beginning to end.
  • It is equipped with a digital counter meter to record the number of turns and adjust the length according to set requirements, thus avoiding rubber wastage.
  • W-type yarn buckles are used to adjust the left-right position and density according to requirements.
  • Auto stop motion in the event of yarn breakage makes operation easier and reduces failure rates.
Tags
Warping MachineTextile MachineryNarrow Fabric Machinery
Brief

Here at TX Machinery, we provide a wide range of ribbon weaving machines, crochet machines, and braiding machines to produce various types of garment ribbons, industrial webbing, shoelaces, straps, cords, ropes, and more. Whether you are looking for heavy nylon webbing, patterned ribbon or lace ribbon, we can offer you the most suitable option.
