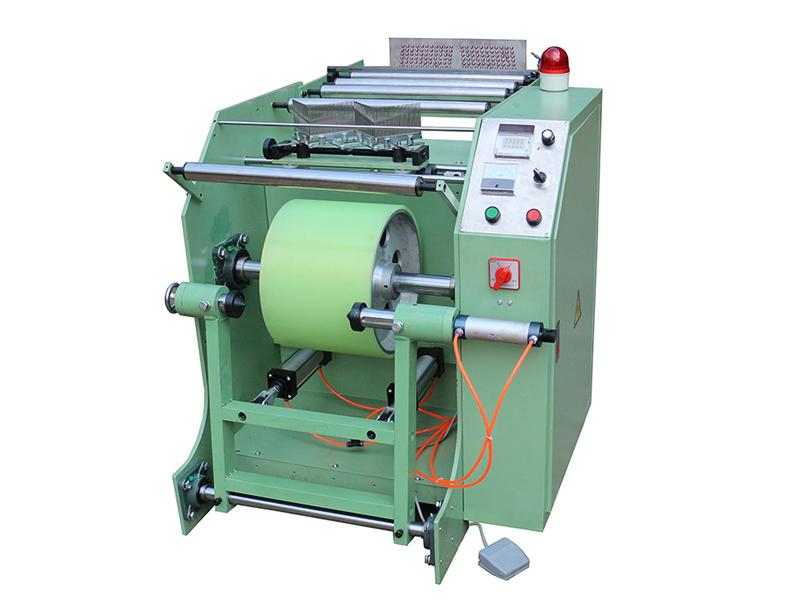

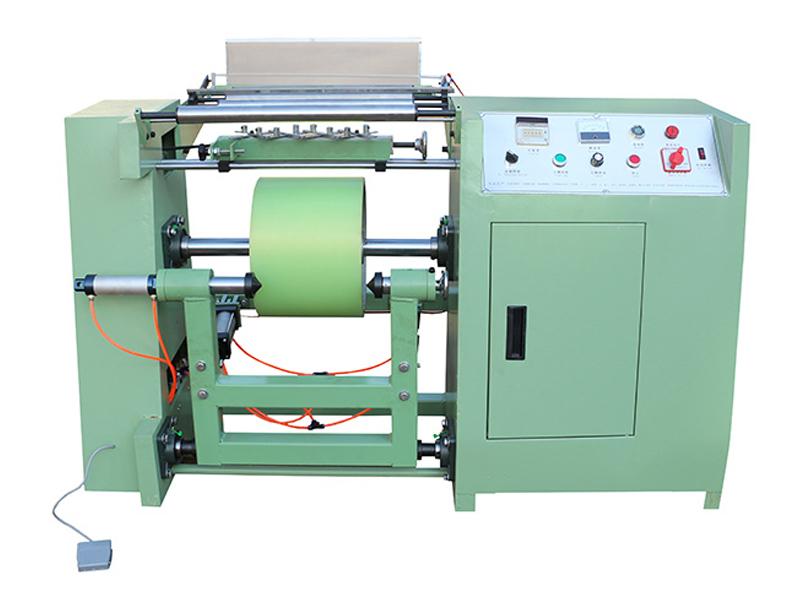

Yarn Warping Machine

  • Yarn Warping Machine
  • Yarn Warping Machine

Yarn warping machines carry out yarn wrapping for a variety of yarn types, including cotton yarn, polyester yarn, and artificial yarn. Yarn winding onto the beams prepares the yarn for the next processes. Beam size is 14 or 16 inches, or customizable upon request.

Inquiry
Parameters
Rear creel 140, 160, 192
Distance of creel 26cm
Beam Diameter is below 400mm, the diameter of bore is 17 or 20mm, length 255mm
Variable speed 0~350 r/min (line speed: 1-600m/min)
Motor Three- phase 1.5KW, 50 Hz, 380v ,3.68A, 1400r/min
Dimension of main machine 1600×700×1000 mm
Dimension of creel 2600×1850×2150 mm
Features
  • The yarn warping machine uses a variable frequency drive to ensure a stable start and flexible speed adjustment, ensuring a constant tension from beginning to end.
  • Driven by the friction between the pressure-adjusted roller and the beam: the friction is adjustable as needed to ensure a uniform yarn tension on the beam.
  • It is equipped with a digital counter meter to record the number of turns and adjust the length according to set requirements, thus avoiding yarn wastage.
  • W-type yarn buckles are used to adjust the left-right position and density according to requirements.
  • Auto stop motion in the event of yarn breakage makes operation easier and reduces failure rates.
Tags
Cotton Yarn Warping MachineTextile Machinery
Brief

Here at TX Machinery, we provide a wide range of ribbon weaving machines, crochet machines, and braiding machines to produce various types of garment ribbons, industrial webbing, shoelaces, straps, cords, ropes, and more. Whether you are looking for heavy nylon webbing, patterned ribbon or lace ribbon, we can offer you the most suitable option.
