Narrow Fabric Weaving Looms

    1. High Speed Needle Loom
    2. High Speed Needle Loom With a webbing width range of 0.5mm to 500mm, this high-speed needle loom machine is applicable for the production of elastic tape, safety belts, PP band, cotton tape, chest belts and plaid ribbon. It easily produces different webbing types and offers increased benefits thanks to the wider width and larger adjustment range.
      Read More

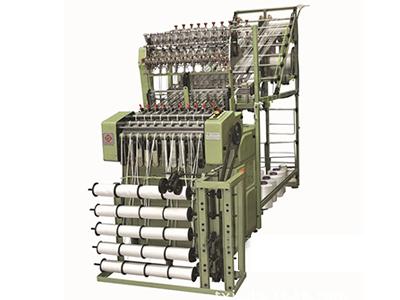

    1. Double Decker Needle Loom
    2. Double Decker Needle Loom With the webbing width range of 1mm to 25mm, the double decker loom is known for its exceptionally high productivity. It carries out the production of two layer webbing, with a maximum of 20 weaving heads.
      Read More

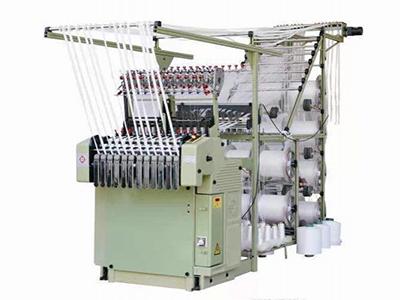

    1. Zipper Tape Needle Loom
    2. Zipper Tape Needle Loom The zipper tape needle loom is designed for the production of zipper tapes. It features a high rotation speed, a low noise, and easy operation. This needle loom produces different metal zipper tapes and nylon zipper tapes for use in clothing, boxes, and shoes. In addition, the stationary pattern chain is used to fix the webbing pattern, ensuring operation and adjustment is easy.
      Read More

As a traditional ribbon loom machine, the high-speed needle loom machine produces a variety of elastic or non-elastic narrow fabrics with simple patterns. This needle loom machine type is applicable to both large and small factories thanks to the smaller production process, high efficiency, easy operation and easy maintenance.

In order to meet strict customer requirements, we have consistently upgraded the needle loom machine. The tape output ranges from 2 to 14 depending on customer needs, and the width options range between 0.5mm (minimum) to 800mm(maximum). Different materials are applicable, including silk, cotton, hemp, wool, polypropylene, acrylic, spandex, polyester and more. So that we are able to meet diverse fabric production requirements, we have specially manufactured the needle loom machine for processing a webbing at a width of 800cm, and a production speed of 350r/min.

High-speed needle loom machines are specially designed to produce a diverse array of products, including shoestrings, elastic belts or tapes, cotton tapes, safety belts, luggage belts, zipper tapes, bandages, pet leashes, and more.

Features
  • Weft insertion direction: from left to right
  • Weft density (string·cm-1): 3.5~36.7
  • Weft density (string·inch-1): 8.9~93.2
  • Open structure: open cam, the ascent and descent of the heald frame is controlled by chain board.
  • Protection device: Auto stop motion for any yarn breakages in warp and weft, auto stop when webbing twines on the shedding roller.
  • Weft yarn tension device: Aluminum weft yarn feed disc and attachments.
  • Warp yarn tension device: Hammer
  • Lubrication: wheel gear is lubricated by oil pump with 30# oil. Change gears, bearings are lubricated using calcium grease.
  • Machine noise: ≤ 85 (dB) (A)
  • Power: 380V, three-phase four-wire system
  • Variable speed: frequency converter
