Zipper Tape Needle Loom

  • Zipper Tape Needle LoomTX12/25
  • Zipper Tape Needle LoomTX14/20

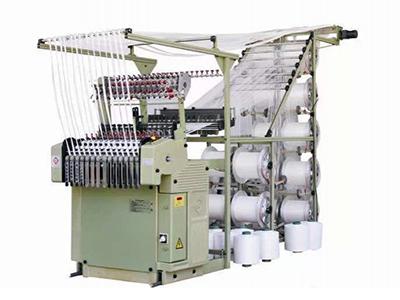

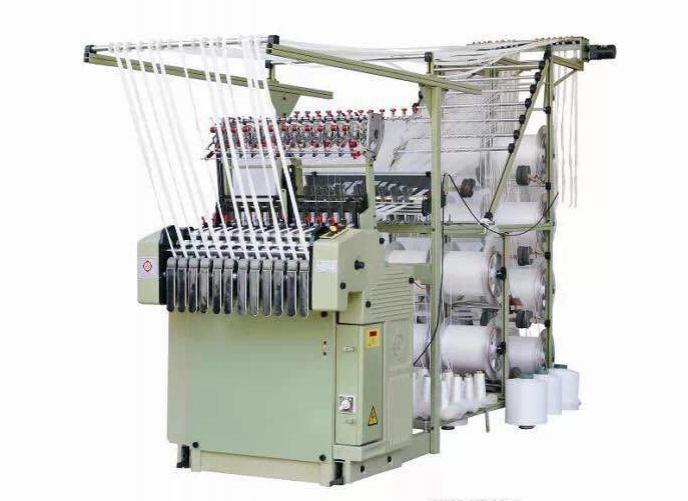

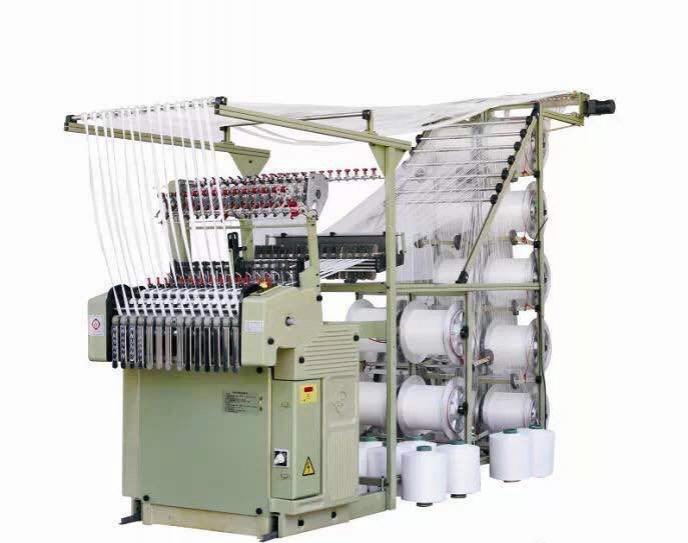

The zipper tape needle loom is designed for the production of zipper tapes. It features a high rotation speed, a low noise, and easy operation. This needle loom produces different metal zipper tapes and nylon zipper tapes for use in clothing, boxes, and shoes. In addition, the stationary pattern chain is used to fix the webbing pattern, ensuring operation and adjustment is easy.

Inquiry
Parameters
Model Application Heads / lines Max. width(mm) Heald frame Pick pepeat Weft density(cm) Machine rotation speed(r/min)
12/25 Metal zipper 12 25 11 Stationary type 3.5-36.7 1300-1500
14/20 Nylon zipper 14 20 6 Stationary type 3.5-36.7 1300-1500
Optional devices
  • Three roller automatic rubber feeding device
  • Double roller automatic rubber feeding device
  • Double take off wheel device
  • Double take off roller device
  • Automatic weft feeding device
  • Belt weft feeding device
  • Double weft double latch needle device
  • Double hook and double latch needle device
  • Frequency converter
  • Counter
  • Front / rear automatic take-up machine
Features
  • The compact and advanced machine structure ensures the needle loom features a small footprint.
  • Main parts are produced using CNC equipment with a process precision of 0.005mm, ensuring machine durability and reducing the depreciation rate, offering more benefits to the user.
  • Lubrication is carried out using an automatic-circulation lubrication system. A broken yarn automatic stop function provides effective control over fabrics used while saving both time and labor.
  • The yarn feeding device utilizes a belt transmission with a gear for flexible speed shifting. This ensures weft yarn feeding stability and ensures the machine is suitable for the production of a variety of webbing types.
Brief

Here at TX Machinery, we provide a wide range of ribbon weaving machines, crochet machines, and braiding machines to produce various types of garment ribbons, industrial webbing, shoelaces, straps, cords, ropes, and more. Whether you are looking for heavy nylon webbing, patterned ribbon or lace ribbon, we can offer you the most suitable option.
